Basic Active directory configuration example

VKB-1166Reference
📦 Applies to
Xen Orchestra
🗓️ Created
2025-07-17
🔄 Updated
2025-07-17
🏷️ Tags
#active-directory#ldap#authentication#plugins

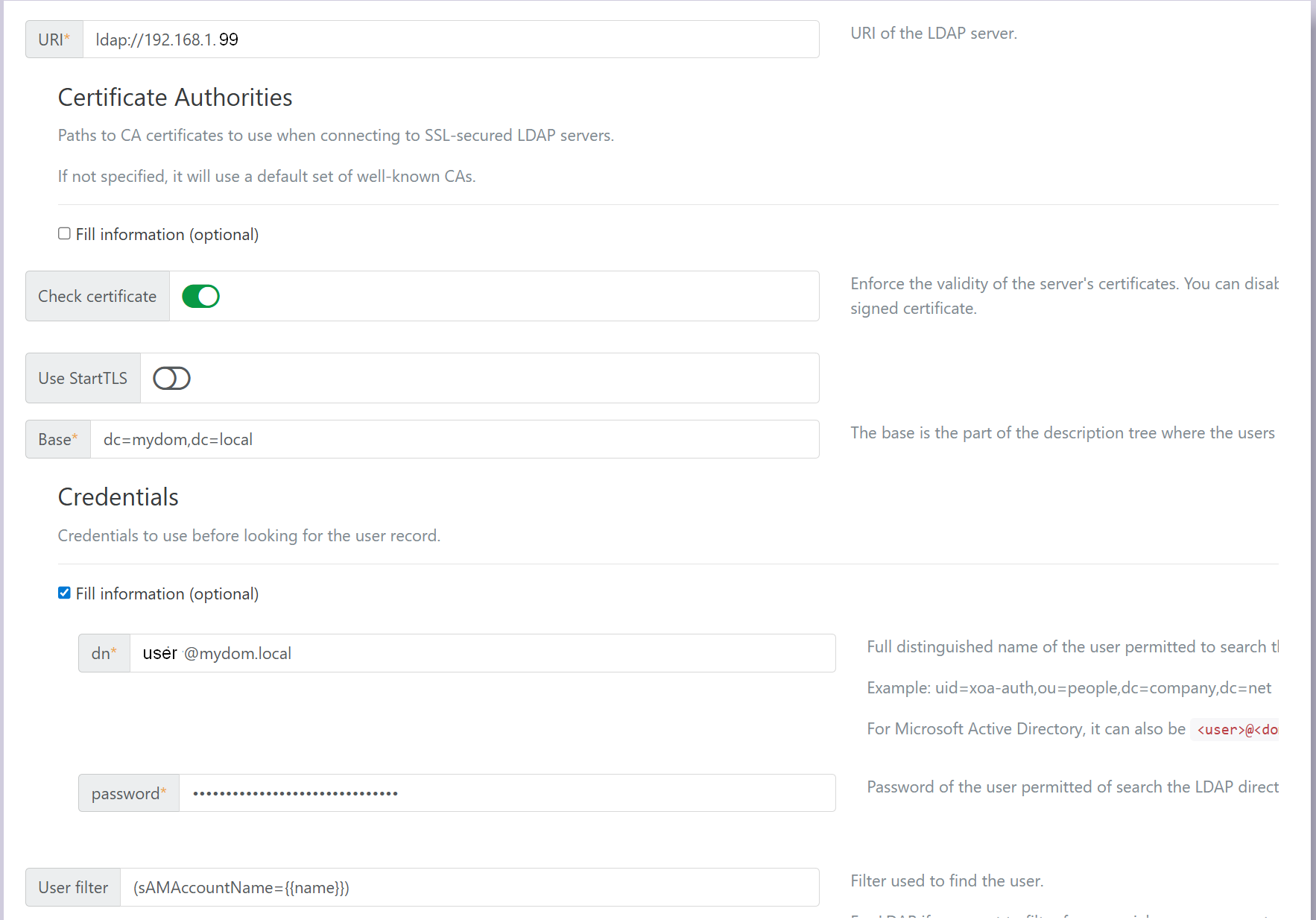

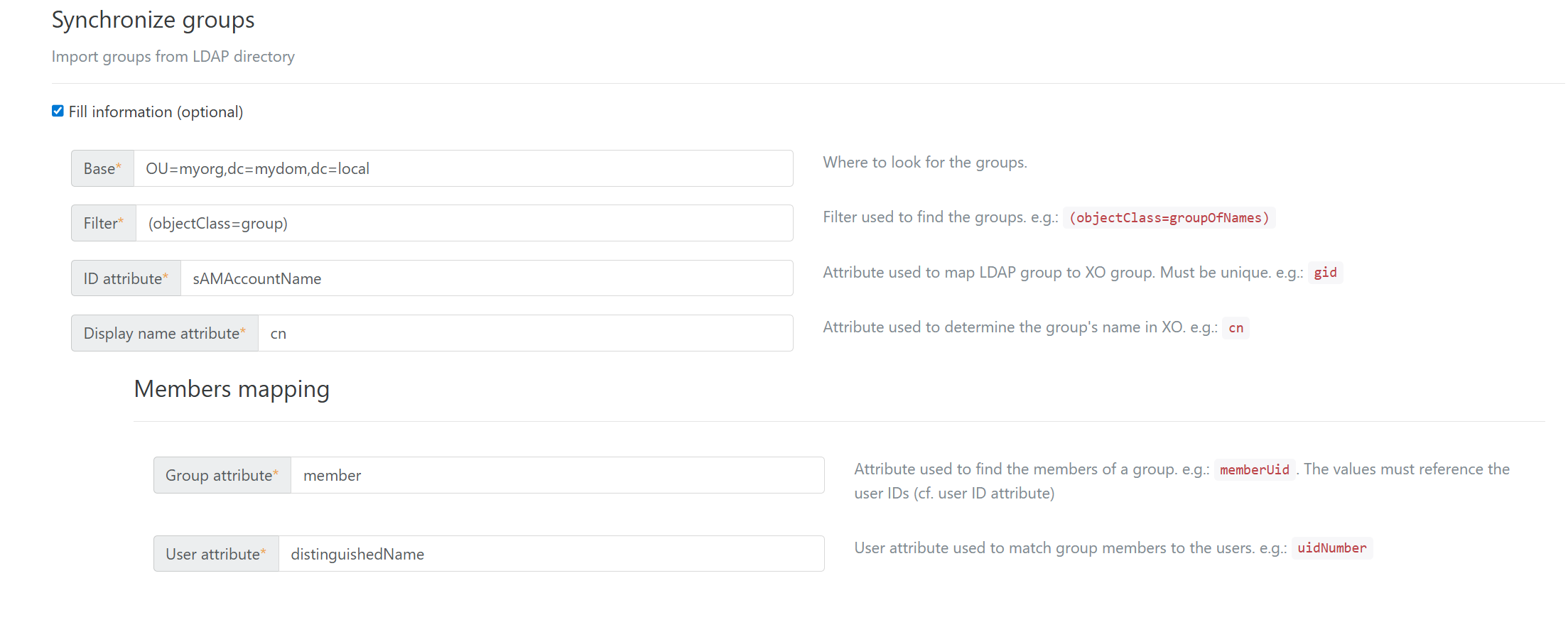

LDAP plugin configuration, first part LDAP plugin configuration, second part

Field-by-field example:

  • URL: should be filled with the AD URL. Example: ldap://192.168.1.23 for AD, ldaps://192.168.1.23:636 for ADS.
  • Certificate Authorities: you can fill this field with a custom authority if needed for your certificate.
  • Check certificate: can be checked for AD and ADS.
  • Use StartTLS: should be checked if using ADS.
  • Base: should be filled with your domain FQDN. Example: dc=mydom,dc=local
  • DN: should be filled with a username able to connect and browse your AD. Example: yachy@mydom.local
  • Password: should be filled with the user password.
  • User filter: should be filled with this sAMAccountName syntax: (sAMAccountName={{name}})
  • ID attribute: should be filled with sAMAccountName.

Group settings:

  • Base: should be filled with the OU where to find groups. Example: OU=Mygroups,OU=myorg,dc=mydom,dc=local
  • Filter: should be filled with the expression to filter your groups. The most basic filter can be (objectClass=group), but you can do way more advanced LDAP expressions for filtering.
  • ID attribute: should be filled with sAMAccountName.
  • Display name attribute: should be filled with CN.
  • Group attribute: should be filled with Member.
  • User attribute: should be filled with distinguishedName.
