DC Scope and DC NetScope

What this page offers​

This page will explain briefly what EasyVirt does, what DC Scope and DC NetScope offer, how to deploy their integrations in Xen Orchestra, and how to access them all without leaving the XO environment.

Introduction​

Xen Orchestra now supports DC Scope and DC NetScope.

These intuitive tools provided by EasyVirt enable you to monitor and optimize your virtualized infrastructure. After Vates and EasyVirt became partners in 2025, we've worked together make DC Scope and DC NetScope more accessible to Vates VMS users. As a result, you can now access DC Scope and DC NetScope from Xen Orchestra, without ever having to switch applications!

tip

To know more on the Vates/EasyVirt partnership, check out our dedicated blog post: Expanding the Vates ecosystem with Easyvirt.

About EasyVirt​

EasyVirt logo

EasyVirt brings innovative solutions to organisations to improve the impact of IT infrastructure.

Since its creation in 2011, EasyVirt’s mission has been to reduce the environmental impact caused by digital services in France and abroad.

For more information on EasyVirt, visit their official website.

About DC Scope​

DC Scope allows you to manage your vSphere infrastructure without complexity. It enhances the visibility over your data center, provides key data to increase the efficiency of your servers, and enriches the decision-making by providing real information about the behavior of your virtual machines.

For more information, see the official DC Scope resources over at EasyVirt's website:

About DC NetScope​

DC NetScope provides network insights into the different network layers in VMware infrastructures. The solution provides operational and interactive views of network flows virtual machines involved, metrics, ports, and protocols.

For more information, see the official DC NetScope resources over at EasyVirt's website:

Deploying DC Scope or DC NetScope​

If DC Scope or DC NetScope aren't already deployed in your Xen Orchestra environment, you can set them up using the corresponding recipes.

tip
  • For more details on how recipes work, see the Recipes section in the Xen Orchestra documentation.
  • Deploying DC Scope or DC NetScope for the first time grants you a 15-day free trial, allowing you to explore all of their features before purchasing a license.

To deploy DC Scope or DC Netscope:

  1. In Xen Orchestra, you have two ways to access the deployment card:
    1. Go to the Hub → Recipes screen.
    2. Go to Pool details → Advanced tab, then click on Deploy DC Scope or Deploy DC NetScope

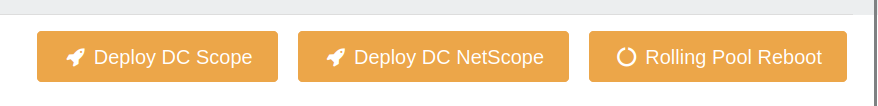

      EasyVirt deployment button in Xen Orchestra

A list of recipes appears.

  1. In that list, go to the EasyVirt VM card:

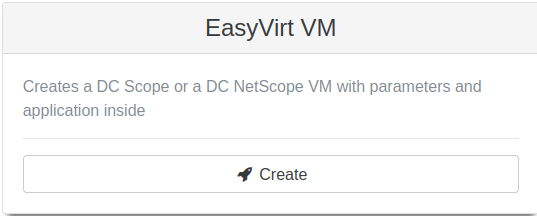

    EasyVirt deployment card in Xen Orchestra
  2. Click the Create button.

DC Scope​

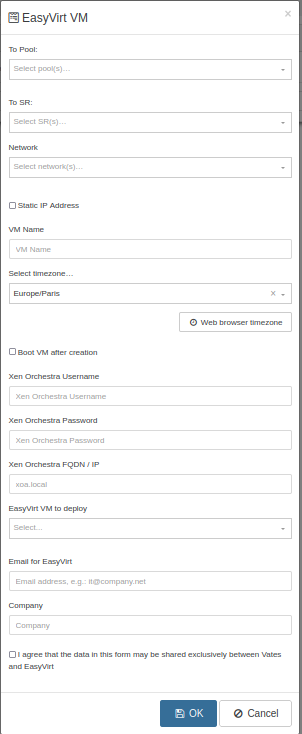

DC Scope creation form in Xen Orchestra

info
  • The network needs to be a pool-wide one in order to get events from all hosts.
  • Xen Orchestra FQDN is the domain you use to connect from any host to the XO instance (example: xoa.local).
  • Check your requirements and your capacity to choose the config you need. The test config is only there for test purposes but you will need more performance to be sure DC Scope is working well.

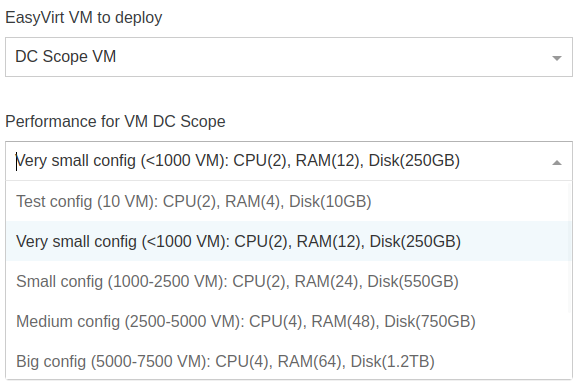

    DC Scope config in Xen Orchestra
  • The default login/password in DC Scope interface is root/easyvirt.

DC NetScope​

info
  • The default login/password in DC NetScope interface is admin@example.com/password. You need to change it in the DC NetScope tab User management.
  • To allow DC NetScope to receive data from each XCP-ng host, you need to export network flow data via NetFlow, documented in EasyVirt documentation.

Accessing DC Scope or DC NetScope​

Once deployed, you can open the DC Scope or DC NetScope dashboard directly from Xen Orchestra:

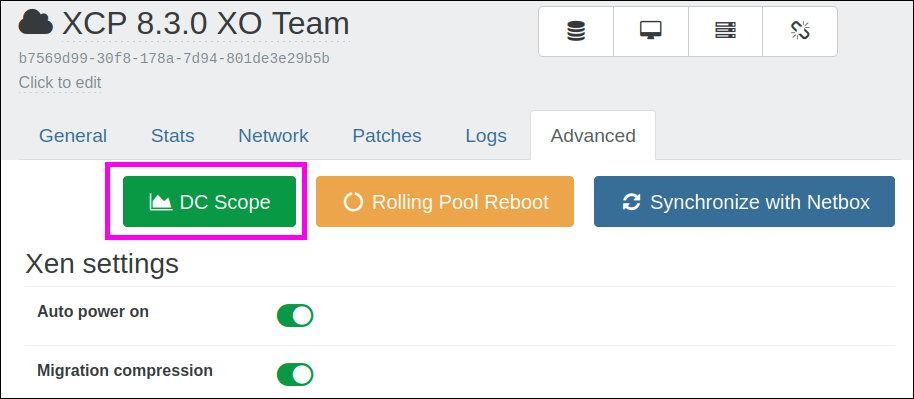

Button to access DC Scope from Xen Orchestra
